The watershed algorithm is a classic algorithm used for segmentation and is especially useful when extracting touching or overlapping objects in images, such as the coins in the figure above.
Using traditional image processing methods such as thresholding and contour detection, we would be unable to extract each individual coin from the image — but by leveraging the watershed algorithm, we are able to detect and extract each coin without a problem.
When utilizing the watershed algorithm we must start with user-defined markers. These markers can be either manually defined via point-and-click, or we can automatically or heuristically define them using methods such as thresholding and/or morphological operations.
Based on these markers, the watershed algorithm treats pixels in our input image as local elevation (called a topography) — the method “floods” valleys, starting from the markers and moving outwards, until the valleys of different markers meet each other. In order to obtain an accurate watershed segmentation, the markers must be correctly placed.
In the remainder of this post, I’ll show you how to use the watershed algorithm to segment and extract objects in images that are both touching and overlapping. To accomplish this, we’ll be using a variety of Python packages including SciPy, scikit-image, and OpenCV.
Looking for the source code to this post?
Jump Right To The Downloads SectionWatershed OpenCV
In the above image you can see examples of objects that would be impossible to extract using simple thresholding and contour detection, Since these objects are touching, overlapping, or both, the contour extraction process would treat each group of touching objects as a single object rather than multiple objects.
The problem with basic thresholding and contour extraction
Let’s go ahead and demonstrate a limitation of simple thresholding and contour detection. Open up a new file, name it contour_only.py
, and let’s get coding:
# import the necessary packages from __future__ import print_function from skimage.feature import peak_local_max from skimage.morphology import watershed from scipy import ndimage import argparse import imutils import cv2 # construct the argument parse and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image") args = vars(ap.parse_args()) # load the image and perform pyramid mean shift filtering # to aid the thresholding step image = cv2.imread(args["image"]) shifted = cv2.pyrMeanShiftFiltering(image, 21, 51) cv2.imshow("Input", image)
We start off on Lines 2-8 by importing our necessary packages. Lines 11-14 then parse our command line arguments. We’ll only need a single switch here, --image
, which is the path to the image that we want to process.
From there, we’ll load our image from disk on Line 18, apply pyramid mean shift filtering (Line 19) to help the accuracy of our thresholding step, and finally display our image to our screen. An example of our output thus far can be seen below:
Now, let’s threshold the mean shifted image:
# convert the mean shift image to grayscale, then apply # Otsu's thresholding gray = cv2.cvtColor(shifted, cv2.COLOR_BGR2GRAY) thresh = cv2.threshold(gray, 0, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)[1] cv2.imshow("Thresh", thresh)
Given our input image
, we then convert it to grayscale and apply Otsu’s thresholding to segment the background from the foreground:
Finally, the last step is to detect contours in the thresholded image and draw each individual contour:
# find contours in the thresholded image cnts = cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE) cnts = imutils.grab_contours(cnts) print("[INFO] {} unique contours found".format(len(cnts))) # loop over the contours for (i, c) in enumerate(cnts): # draw the contour ((x, y), _) = cv2.minEnclosingCircle(c) cv2.putText(image, "#{}".format(i + 1), (int(x) - 10, int(y)), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2) cv2.drawContours(image, [c], -1, (0, 255, 0), 2) # show the output image cv2.imshow("Image", image) cv2.waitKey(0)
Below we can see the output of our image processing pipeline:
As you can see, our results are pretty terrible. Using simple thresholding and contour detection our Python script reports that there are only two coins in the images, even though there are clearly nine of them.
The reason for this problem arises from the fact that coin borders are touching each other in the image — thus, the cv2.findContours
function only sees the coin groups as a single object when in fact they are multiple, separate coins.
Note: A series of morphological operations (specifically, erosions) would help us for this particular image. However, for objects that are overlapping these erosions would not be sufficient. For the sake of this example, let’s pretend that morphological operations are not a viable option so that we may explore the watershed algorithm.
Using the watershed algorithm for segmentation
Now that we understand the limitations of simple thresholding and contour detection, let’s move on to the watershed algorithm. Open up a new file, name it watershed.py
, and insert the following code:
# import the necessary packages from skimage.feature import peak_local_max from skimage.morphology import watershed from scipy import ndimage import numpy as np import argparse import imutils import cv2 # construct the argument parse and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image") args = vars(ap.parse_args()) # load the image and perform pyramid mean shift filtering # to aid the thresholding step image = cv2.imread(args["image"]) shifted = cv2.pyrMeanShiftFiltering(image, 21, 51) cv2.imshow("Input", image) # convert the mean shift image to grayscale, then apply # Otsu's thresholding gray = cv2.cvtColor(shifted, cv2.COLOR_BGR2GRAY) thresh = cv2.threshold(gray, 0, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)[1] cv2.imshow("Thresh", thresh)
Again, we’ll start on Lines 2-8 by importing our required packages. We’ll be using functions from SciPy, scikit-image, imutils, and OpenCV. If you don’t already have SciPy and scikit-image installed on your system, you can use pip
to install them for you:
$ pip install --upgrade scipy $ pip install --upgrade scikit-image $ pip install --upgrade imutils
Lines 11-14 handle parsing our command line arguments. Just like in the previous example, we only need a single switch, the path to the image --image
we are going to apply the watershed algorithm to.
From there, Lines 18 and 19 load our image from disk and apply pyramid mean shift filtering. Lines 24-26 perform grayscale conversion and thresholding.
Given our thresholded image, we can now apply the watershed algorithm:
# compute the exact Euclidean distance from every binary # pixel to the nearest zero pixel, then find peaks in this # distance map D = ndimage.distance_transform_edt(thresh) localMax = peak_local_max(D, indices=False, min_distance=20, labels=thresh) # perform a connected component analysis on the local peaks, # using 8-connectivity, then appy the Watershed algorithm markers = ndimage.label(localMax, structure=np.ones((3, 3)))[0] labels = watershed(-D, markers, mask=thresh) print("[INFO] {} unique segments found".format(len(np.unique(labels)) - 1))
The first step in applying the watershed algorithm for segmentation is to compute the Euclidean Distance Transform (EDT) via the distance_transform_edt
function (Line 32). As the name suggests, this function computes the Euclidean distance to the closest zero (i.e., background pixel) for each of the foreground pixels. We can visualize the EDT in the figure below:
On Line 33 we take D
, our distance map, and find peaks (i.e., local maxima) in the map. We’ll ensure that is at least a 20 pixel distance between each peak.
Line 38 takes the output of the peak_local_max
function and applies a connected-component analysis using 8-connectivity. The output of this function gives us our markers
which we then feed into the watershed
function on Line 39. Since the watershed algorithm assumes our markers represent local minima (i.e., valleys) in our distance map, we take the negative value of D
.
The watershed
function returns a matrix of labels
, a NumPy array with the same width and height as our input image. Each pixel value as a unique label value. Pixels that have the same label value belong to the same object.
The last step is to simply loop over the unique label values and extract each of the unique objects:
# loop over the unique labels returned by the Watershed # algorithm for label in np.unique(labels): # if the label is zero, we are examining the 'background' # so simply ignore it if label == 0: continue # otherwise, allocate memory for the label region and draw # it on the mask mask = np.zeros(gray.shape, dtype="uint8") mask[labels == label] = 255 # detect contours in the mask and grab the largest one cnts = cv2.findContours(mask.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE) cnts = imutils.grab_contours(cnts) c = max(cnts, key=cv2.contourArea) # draw a circle enclosing the object ((x, y), r) = cv2.minEnclosingCircle(c) cv2.circle(image, (int(x), int(y)), int(r), (0, 255, 0), 2) cv2.putText(image, "#{}".format(label), (int(x) - 10, int(y)), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2) # show the output image cv2.imshow("Output", image) cv2.waitKey(0)
On Line 44 we start looping over each of the unique labels
. If the label
is zero, then we are examining the “background component”, so we simply ignore it.
Otherwise, Lines 52 and 53 allocate memory for our mask
and set the pixels belonging to the current label to 255 (white). We can see an example of such a mask below on the right:
On Lines 56-59 we detect contours in the mask
and extract the largest one — this contour will represent the outline/boundary of a given object in the image.
Finally, given the contour of the object, all we need to do is draw the enclosing circle boundary surrounding the object on Lines 62-65. We could also compute the bounding box of the object, apply a bitwise operation, and extract each individual object as well.
Finally, Lines 68 and 69 display the output image to our screen:
As you can see, we have successfully detected all nine coins in the image. Furthermore, we have been able to cleanly draw the boundaries surrounding each coin as well. This is in stark contrast to the previous example using simple thresholding and contour detection where only two objects were (incorrectly) detected.
Applying the watershed algorithm to images
Now that our watershed.py
script is finished up, let’s apply it to a few more images and investigate the results:
$ python watershed.py --image images/coins_02.png

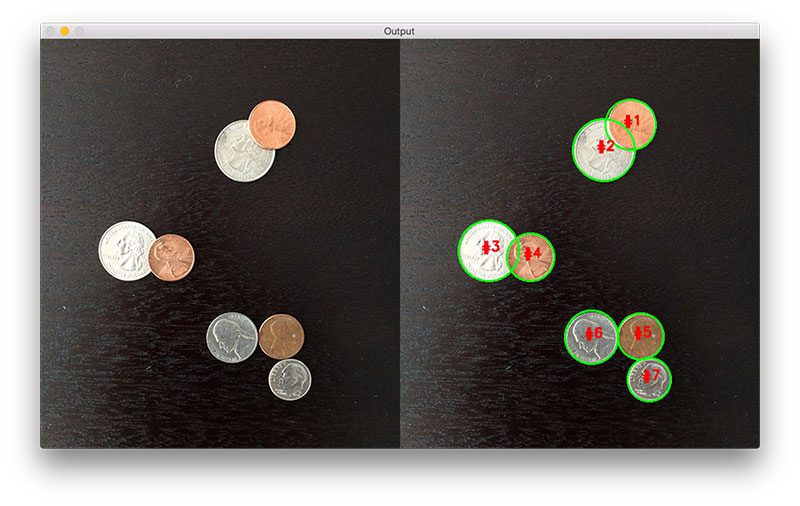

Let’s try another image, this time with overlapping coins:
$ python watershed.py --image images/coins_03.png
In the following image, I decided to apply the watershed algorithm to the task of pill counting:
$ python watershed.py --image images/pills_01.png
The same is true for this image as well:
$ python watershed.py --image images/pills_02.png
