In this tutorial, you will learn how to detect fire and smoke using Computer Vision, OpenCV, and the Keras Deep Learning library.
Todayās tutorial is inspired by an email I received last week from PyImageSearch reader, Daniel.
Daniel writes:
Hey Adrian, Iām not sure if youāve seen the news, but my home state of California has been absolutely ravaged by wildfires over the past few weeks.
My family lives in the Los Angeles area, not too far from the Getty fire. Itās hard not to be concerned about our home and our safety.
Itās a scary situation and it got me thinking:
Do you think computer vision could be used to detect wildfires? What about fires that start in peopleās homes?
If you could write a tutorial on the topic I would appreciate it. Iād love to learn from it and do my part to help others.
The short answer is, yes, computer vision and deep learning can be used to detect wildfires:
- IoT/Edge devices equipped with cameras can be deployed strategically throughout hillsides, ridges, and high elevation areas, automatically monitoring for signs of smoke or fire.
- Drones and quadcopters can be flown above areas prone to wildfires, strategically scanning for smoke.
- Satellites can be used to take photos of large acreage areas while computer vision and deep learning algorithms process these images, looking for signs of smoke.
Thatās all fine and good for wildfires — but what if you wanted to monitor your own home for smoke or fire?
The answer there is to augment existing sensors to aid in fire/smoke detection:
- Existing smoke detectors utilize photoelectric sensors and a light source to detect if the light source particles are being scattered (implying smoke is present).
- You could then distribute temperature sensors around the house to monitor the temperature of each room.
- Cameras could also be placed in areas where fires are likely to start (kitchen, garage, etc.).
- Each individual sensor could be used to trigger an alarm or you could relay the sensor information to a central hub that aggregates and analyzes the sensor data, computing a probability of a home fire.
Unfortunately, thatās all easier said than done.
While there are 100s of computer vision/deep learning practitioners around the world actively working on fire and smoke detection (including PyImageSearch Gurus member, David Bonn), itās still an open-ended problem.
That said, today Iāll help you get your start in smoke and fire detection — by the end of this tutorial, youāll have a deep learning model capable of detecting fire in images (Iāve even included my pre-trained model to get you up and running immediately).
To learn how to create your own fire and smoke detector with Computer Vision, Deep Learning, and Keras, just keep reading!
Looking for the source code to this post?
Jump Right To The Downloads SectionFire and smoke detection with Keras and Deep Learning
In the first part of this tutorial weāll discuss the two datasets weāll be using for fire and smoke detection.
From there weāll review or directory structure for the project and then implement FireDetectionNet
, the CNN architecture weāll be using to detect fire and smoke in images/video.
Next, weāll train our fire detection model and analyze the classification accuracy and results.
Weāll wrap up the tutorial by discussing some of the limitations and drawbacks of the approach, including how you can improve and extend the method.
Our fire and smoke dataset
The dataset weāll be using for fire and smoke examples was curated by PyImageSearch reader, Gautam Kumar.
Guatam gathered a total of 1,315 images by searching Google Images for queries related to the term āfireā, āsmokeā, etc.
However, the original dataset has not been cleansed of extraneous, irrelevant images that are not related to fire and smoke (i.e., examples of famous buildings before a fire occurred).
Fellow PyImageSearch reader, David Bonn, took the time to manually go through the fire/smoke images and identify ones that should not be included.
Note: I took the list of extraneous images identified by David and then created a shell script to delete them from the dataset. The shell script can be found in the “Downloads” section of this tutorial.
The 8-scenes dataset
The dataset weāll be using for Non-fire examples is called 8-scenes as it contains 2,688 image examples belonging to eight natural scene categories (all without fire):
- Coast
- Mountain
- Forest
- Open country
- Street
- Inside city
- Tall buildings
- Highways
The dataset was originally curated by Oliva and Torralba in their 2001 paper, Modeling the shape of the scene: a holistic representation of the spatial envelope.
The 8-scenes dataset is a natural complement to our fire/smoke dataset as it depicts natural scenes as they should look without fire or smoke present.
While this dataset has 8 unique classes, we will consider the dataset as a single Non-fire class when we combine it with Gautam’s Fire dataset.
Project structure
Go ahead and grab today’s .zip from the source code and pre-trained model using the “Downloads” section of this blog post.
From there you can unzip it on your machine and your project will look like Figure 4. There is an exception: neither dataset .zip (white arrows) will be present yet. We will download, extract, and prune the datasets in the next section.
Our output/
directory contains:
- Our serialized fire detection model. We will train the model today with Keras and deep learning.

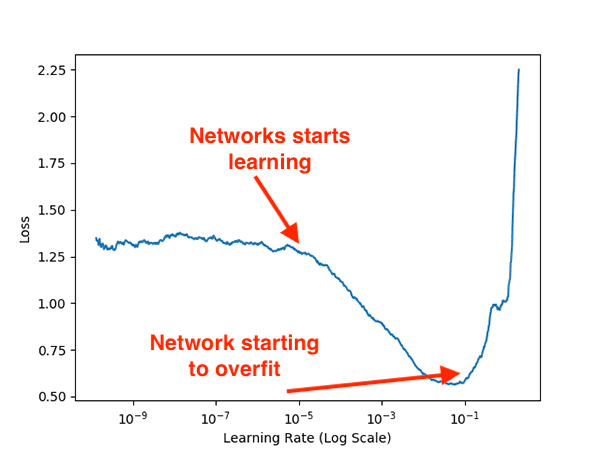

- The Learning Rate Finder plot will be generated and inspected for the optimal learning rate prior to training.
- A training history plot will be generated upon completion of the training process.
- The
examples/
subdirectory will be populated bypredict_fire.py
with sample images that will be annotated for demonstration and verification purposes.
Our pyimagesearch
module holds:
config.py
: Our customizable configuration.FireDetectionNet
: Our Keras Convolutional Neural Network class designed specifically for detecting fire and smoke.LearningRateFinder
: A Keras class for assisting in the process of finding the optimal learning rate for deep learning training.
The root of the project contains three scripts:
prune.sh
: A simple bash script that removes irrelevant images from Gautam’s fire dataset.train.py
: Our Keras deep learning training script. This script has two modes of operation: (1) Learning Rate Finder mode,and (2) training mode.predict_fire.py
: A quick and dirty script which samples images from our dataset, generating annotated Fire/Non-fire images for verification.
Let’s move on to preparing our Fire/Non-fire dataset in the next section.
Preparing our Fire and Non-fire combined dataset
Preparing our Fire and Non-fire dataset involves a four-step process:
- Step #1: Ensure you followed the instructions in the previous section to grab and unzip today’s files from the “Downloads” section.
- Step #2: Download and extract the fire/smoke dataset into the project.
- Step #3: Prune the fire/smoke dataset for extraneous, irrelevant files.
- Step #4: Download and extract the 8-scenes dataset into the project.
The result of Steps #2-4 will be a dataset consisting of two classes:
- Fire
- Non-fire
Combining datasets is a tactic I often use. It saves valuable time and often leads to a great model.
Let’s begin putting our combined dataset together.
Step #2: Download and extract the fire/smoke dataset into the project.
Download the fire/smoke dataset using this link. Store the .zip in the keras-fire-detection/
project directory that you extracted in the last section.
Once downloaded, unzip the dataset:
$ unzip Robbery_Accident_Fire_Database2.zip
Step #3: Prune the dataset for extraneous, irrelevant files.
Execute the prune.sh
script to delete the extraneous, irrelevant files from the fire dataset:
$ sh prune.sh
At this point, we have Fire data. Now we need Non-fire data for our two-class problem.
Step #4: Download and extract the 8-scenes dataset into the project.
Download the 8-scenes dataset using this link. Store the .zip in the keras-fire-detection/
project directory alongside the Fire dataset.
Once downloaded, navigate to the project folder and unarchive the dataset:
$ unzip spatial_envelope_256x256_static_8outdoorcategories.zip
Review Project + Dataset Structure
At this point, it is time to inspect our directory structure once more. Yours should be identical to mine:
$ tree --dirsfirst --filelimit 10 . āāā Robbery_Accident_Fire_Database2 ā āāā Accident [887 entries] ā āāā Fire [1315 entries] ā āāā Robbery [2073 entries] ā āāā readme.txt āāā spatial_envelope_256x256_static_8outdoorcategories [2689 entries] āāā output ā āāā examples [48 entries] ā āāā fire_detection.model ā ā āāā assets ā ā āāā variables ā ā ā āāā variables.data-00000-of-00002 ā ā ā āāā variables.data-00001-of-00002 ā ā ā āāā variables.index ā ā āāā saved_model.pb ā āāā lrfind_plot.png ā āāā training_plot.png āāā pyimagesearch ā āāā __init__.py ā āāā config.py ā āāā firedetectionnet.py ā āāā learningratefinder.py āāā Robbery_Accident_Fire_Database.zip āāā spatial_envelope_256x256_static_8outdoorcategories.zip āāā prune.sh āāā train.py āāā predict_fire.py 11 directories, 16 files
Ensure your dataset is pruned (i.e. the Fire/
directory should have exactly 1,315 entries and not the previous 1,405 entries).
Our configuration file
This project will span multiple Python files that will need to be executed, so letās store all important variables in a single config.py
file.
Open up config.py
now and insert the following code:
# import the necessary packages import os # initialize the path to the fire and non-fire dataset directories FIRE_PATH = os.path.sep.join(["Robbery_Accident_Fire_Database2", "Fire"]) NON_FIRE_PATH = "spatial_envelope_256x256_static_8outdoorcategories" # initialize the class labels in the dataset CLASSES = ["Non-Fire", "Fire"]
We’ll use the os
module for combining paths (Line 2).
Lines 5-7 contain paths to our (1) Fire images, and (2) Non-fire images.
Line 10 is a list of our two class names.
Let’s set a handful of training parameters:
# define the size of the training and testing split TRAIN_SPLIT = 0.75 TEST_SPLIT = 0.25 # define the initial learning rate, batch size, and number of epochs INIT_LR = 1e-2 BATCH_SIZE = 64 NUM_EPOCHS = 50
Lines 13 and 14 define the size of our training and testing dataset splits.
Lines 17-19 contain three hyperparameters — the initial learning rate, batch size, and number of epochs to train for.
From here, we’ll define a few paths:
# set the path to the serialized model after training MODEL_PATH = os.path.sep.join(["output", "fire_detection.model"]) # define the path to the output learning rate finder plot and # training history plot LRFIND_PLOT_PATH = os.path.sep.join(["output", "lrfind_plot.png"]) TRAINING_PLOT_PATH = os.path.sep.join(["output", "training_plot.png"])
Lines 22-27 include paths to:
- Our yet-to-be-trained serialized fire detection model.
- The Learning Rate Finder plot which we will analyze to set our initial learning rate.
- A training accuracy/loss history plot.
To wrap up our config we’ll define settings for prediction spot-checking:
# define the path to the output directory that will store our final # output with labels/annotations along with the number of images to # sample OUTPUT_IMAGE_PATH = os.path.sep.join(["output", "examples"]) SAMPLE_SIZE = 50
Our prediction script will sample and annotate images using our model.
Lines 32 and 33 include the path to output directory where weāll store output classification results and the number of images to sample.
Implementing our fire detection Convolutional Neural Network
In this section weāll implement FireDetectionNet
, a Convolutional Neural Network used to detect smoke and fire in images.
This network utilizes depthwise separable convolution rather than standard convolution as depthwise separable convolution:
- Is more efficient, as Edge/IoT devices will have limited CPU and power draw.
- Requires less memory, as again, Edge/IoT devices have limited RAM.
- Requires less computation, as we have limited CPU horsepower.
- Can perform better than standard convolution in some cases, which can lead to a better fire/smoke detector.
Letās get started implementing FireDetectioNet
now — open up the firedetectionnet.py
file now and insert the following code:
# import the necessary packages from tensorflow.keras.models import Sequential from tensorflow.keras.layers import BatchNormalization from tensorflow.keras.layers import SeparableConv2D from tensorflow.keras.layers import MaxPooling2D from tensorflow.keras.layers import Activation from tensorflow.keras.layers import Flatten from tensorflow.keras.layers import Dropout from tensorflow.keras.layers import Dense class FireDetectionNet: @staticmethod def build(width, height, depth, classes): # initialize the model along with the input shape to be # "channels last" and the channels dimension itself model = Sequential() inputShape = (height, width, depth) chanDim = -1
Our TensorFlow 2.0 Keras imports span from Lines 2-9. We will use Keras’ Sequential API to build our fire detection CNN.
Line 11 defines our FireDetectionNet
class. We begin by defining the build
method on Line 13.
The build
method accepts parameters including dimensions of our images (width
, height
, depth
) as well as the number of classes
we will be training our model to recognize (i.e. this parameter affects the softmax classifier head shape).
We then initialize the model
and inputShape
(Lines 16-18).
From here we’ll define our first set of CONV => RELU => POOL
layers:
# CONV => RELU => POOL model.add(SeparableConv2D(16, (7, 7), padding="same", input_shape=inputShape)) model.add(Activation("relu")) model.add(BatchNormalization(axis=chanDim)) model.add(MaxPooling2D(pool_size=(2, 2)))
These layers use a larger kernel size to both (1) reduce the input volume spatial dimensions faster, and (2) detect larger color blobs that contain fire.
We’ll then define more CONV => RELU => POOL
layer sets:
# CONV => RELU => POOL model.add(SeparableConv2D(32, (3, 3), padding="same")) model.add(Activation("relu")) model.add(BatchNormalization(axis=chanDim)) model.add(MaxPooling2D(pool_size=(2, 2))) # (CONV => RELU) * 2 => POOL model.add(SeparableConv2D(64, (3, 3), padding="same")) model.add(Activation("relu")) model.add(BatchNormalization(axis=chanDim)) model.add(SeparableConv2D(64, (3, 3), padding="same")) model.add(Activation("relu")) model.add(BatchNormalization(axis=chanDim)) model.add(MaxPooling2D(pool_size=(2, 2)))
Lines 34-40 allow our model to learn richer features by stacking two sets of CONV => RELU
before applying a POOL
.
From here we’ll create our fully-connected head of the network:
# first set of FC => RELU layers model.add(Flatten()) model.add(Dense(128)) model.add(Activation("relu")) model.add(BatchNormalization()) model.add(Dropout(0.5)) # second set of FC => RELU layers model.add(Dense(128)) model.add(Activation("relu")) model.add(BatchNormalization()) model.add(Dropout(0.5)) # softmax classifier model.add(Dense(classes)) model.add(Activation("softmax")) # return the constructed network architecture return model
Lines 43-53 add two sets of FC => RELU
layers.
Lines 56 and 57 append our Softmax classifier prior to Line 60 returning the model
.
Creating our training script
Our training script will be responsible for:
- Loading our Fire and Non-fire combined dataset from disk.
- Instantiating our
FireDetectionNet
architecture. - Finding our optimal learning rate by using our
LearningRateFinder
class. - Taking the optimal learning rate and training our network for the full set of epochs.
Letās get started!
Open up the train.py
file in your directory structure and insert the following code:
# set the matplotlib backend so figures can be saved in the background import matplotlib matplotlib.use("Agg") # import the necessary packages from tensorflow.keras.preprocessing.image import ImageDataGenerator from tensorflow.keras.optimizers import SGD from tensorflow.keras.utils import to_categorical from sklearn.model_selection import train_test_split from sklearn.metrics import classification_report from pyimagesearch.learningratefinder import LearningRateFinder from pyimagesearch.firedetectionnet import FireDetectionNet from pyimagesearch import config from imutils import paths import matplotlib.pyplot as plt import numpy as np import argparse import cv2 import sys
Lines 1-19 handle our imports:
matplotlib
: For generating plots with Python. Line 3 sets the backend so we can save our plots as image files.tensorflow.keras
: Our TensorFlow 2.0 imports including data augmentation, stochastic gradient descent optimizer, and one-hot label encoder.sklearn
: Two imports for dataset splitting and classification reporting.LearningRateFinder
: A class we will use for finding an optimal learning rate prior to training. When we operate our script in this mode, it will generate a plot for us to (1) manually inspect and (2) insert the optimal learning rate into our configuration file.FireDetectionNet
: The fire/smoke Convolutional Neural Network (CNN) that we built in the previous section.config
: Our configuration file of settings for this training script (it also contains settings for our prediction script).paths
: Contains functions from my imutils package to list images in a directory tree.argparse
: For parsing command line argument flags.cv2
: OpenCV is used for loading and preprocessing images.
Now that we’ve imported packages, let’s define a reusable function to load our dataset:
def load_dataset(datasetPath): # grab the paths to all images in our dataset directory, then # initialize our lists of images imagePaths = list(paths.list_images(datasetPath)) data = [] # loop over the image paths for imagePath in imagePaths: # load the image and resize it to be a fixed 128x128 pixels, # ignoring aspect ratio image = cv2.imread(imagePath) image = cv2.resize(image, (128, 128)) # add the image to the data lists data.append(image) # return the data list as a NumPy array return np.array(data, dtype="float32")
Our load_dataset
helper function assists with loading, preprocessing, and preparing both the Fire and Non-fire datasets.
Line 21 defines the function which accepts a path to the dataset.
Line 24 grabs all image paths in the dataset.
Lines 28-35 loop over the imagePaths
. Images are loaded, resized to 128×128 dimensions, and added to the data
list.
Line 38 returns the data
in NumPy array format.
We’ll now parse a single command line argument:
# construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-f", "--lr-find", type=int, default=0, help="whether or not to find optimal learning rate") args = vars(ap.parse_args())
The --lr-find
flag sets the mode for our script. If the flag is set to 1
, then we’ll be in our learning rate finder mode, generating a learning rate plot for us to inspect. Otherwise, our script will operate in training mode and train the network for the full set of epochs (i.e. when the --lr-find
flag is not present).
Let’s go ahead and load our data
now:
# load the fire and non-fire images print("[INFO] loading data...") fireData = load_dataset(config.FIRE_PATH) nonFireData = load_dataset(config.NON_FIRE_PATH) # construct the class labels for the data fireLabels = np.ones((fireData.shape[0],)) nonFireLabels = np.zeros((nonFireData.shape[0],)) # stack the fire data with the non-fire data, then scale the data # to the range [0, 1] data = np.vstack([fireData, nonFireData]) labels = np.hstack([fireLabels, nonFireLabels]) data /= 255
Lines 48 and 49 load and resize the Fire and Non-fire images.
Lines 52 and 53 construct labels for both classes (1
for Fire and 0
for Non-fire).
Subsequently, we stack the data
and labels
into a single NumPy array (i.e. combine the datasets) via Lines 57 and 58.
Line 59 scales pixel intensities to the range [0, 1].
We have three more steps to prepare our data:
# perform one-hot encoding on the labels and account for skew in the # labeled data labels = to_categorical(labels, num_classes=2) classTotals = labels.sum(axis=0) classWeight = classTotals.max() / classTotals # construct the training and testing split (trainX, testX, trainY, testY) = train_test_split(data, labels, test_size=config.TEST_SPLIT, random_state=42)
First, we perform one-hot encoding on our labels
(Line 63).
Then, we account for skew in our dataset (Lines 64 and 65). To do so, we compute the classWeight
to weight Fire images more than Non-fire images during the gradient update (as we have over 2x more Fire images than Non-fire images).
Lines 68 and 69 construct training and testing splits based on our config (in my config I have the split set to 75% training/25% testing).
Next, we’ll initialize data augmentation and compile our FireDetectionNet
model:
# initialize the training data augmentation object aug = ImageDataGenerator( rotation_range=30, zoom_range=0.15, width_shift_range=0.2, height_shift_range=0.2, shear_range=0.15, horizontal_flip=True, fill_mode="nearest") # initialize the optimizer and model print("[INFO] compiling model...") opt = SGD(lr=config.INIT_LR, momentum=0.9, decay=config.INIT_LR / config.NUM_EPOCHS) model = FireDetectionNet.build(width=128, height=128, depth=3, classes=2) model.compile(loss="binary_crossentropy", optimizer=opt, metrics=["accuracy"])
Lines 74-79 instantiate our data augmentation object.
We then build
and compile
our FireDetectionNet
model (Lines 83-88). Note that our initial learning rate and decay is set as we initialize our SGD
optimizer.
Let’s handle our Learning Rate Finder mode:
# check to see if we are attempting to find an optimal learning rate # before training for the full number of epochs if args["lr_find"] > 0: # initialize the learning rate finder and then train with learning # rates ranging from 1e-10 to 1e+1 print("[INFO] finding learning rate...") lrf = LearningRateFinder(model) lrf.find( aug.flow(trainX, trainY, batch_size=config.BATCH_SIZE), 1e-10, 1e+1, stepsPerEpoch=np.ceil((trainX.shape[0] / float(config.BATCH_SIZE))), epochs=20, batchSize=config.BATCH_SIZE, classWeight=classWeight) # plot the loss for the various learning rates and save the # resulting plot to disk lrf.plot_loss() plt.savefig(config.LRFIND_PLOT_PATH) # gracefully exit the script so we can adjust our learning rates # in the config and then train the network for our full set of # epochs print("[INFO] learning rate finder complete") print("[INFO] examine plot and adjust learning rates before training") sys.exit(0)
Line 92 checks to see if we should attempt to find optimal learning rates. Assuming so, we:
- Initialize
LearningRateFinder
(Line 96). - Start training with a
1e-10
learning rate and exponentially increase it until we hit1e+1
(Lines 97-103). - Plot the loss vs. learning rate and save the resulting figure (Lines 107 and 108).
- Gracefully
exit
the script after printing a couple of messages to the user (Lines 115).
After this code executes we now need to:
- Step #1: Manually inspect the generated learning rate plot.
- Step #2: Update
config.py
with ourINIT_LR
(i.e., the optimal learning rate we determined by analyzing the plot). - Step #3: Train the network on our full dataset.
Assuming we have completed Step #1 and Step #2, now let’s handle the Step #3 where our initial learning rate has been determined and updated in the config. In this case, it is time to handle training mode in our script:
# train the network print("[INFO] training network...") H = model.fit_generator( aug.flow(trainX, trainY, batch_size=config.BATCH_SIZE), validation_data=(testX, testY), steps_per_epoch=trainX.shape[0] // config.BATCH_SIZE, epochs=config.NUM_EPOCHS, class_weight=classWeight, verbose=1)
Lines 119-125 train our fire detection model
using data augmentation and our skewed dataset class weighting. Be sure to review my .fit_generator
tutorial.
Finally, we’ll evaluate the model, serialize it to disk, and plot the training history:
# evaluate the network and show a classification report print("[INFO] evaluating network...") predictions = model.predict(testX, batch_size=config.BATCH_SIZE) print(classification_report(testY.argmax(axis=1), predictions.argmax(axis=1), target_names=config.CLASSES)) # serialize the model to disk print("[INFO] serializing network to '{}'...".format(config.MODEL_PATH)) model.save(config.MODEL_PATH) # construct a plot that plots and saves the training history N = np.arange(0, config.NUM_EPOCHS) plt.style.use("ggplot") plt.figure() plt.plot(N, H.history["loss"], label="train_loss") plt.plot(N, H.history["val_loss"], label="val_loss") plt.plot(N, H.history["accuracy"], label="train_acc") plt.plot(N, H.history["val_accuracy"], label="val_acc") plt.title("Training Loss and Accuracy") plt.xlabel("Epoch #") plt.ylabel("Loss/Accuracy") plt.legend(loc="lower left") plt.savefig(config.TRAINING_PLOT_PATH)
Lines 129-131 make predictions on test data and print a classification report in our terminal.
Line 135 serializes the model
and saves it to disk. We’ll recall the model in our prediction script.
Lines 138-149 generate a historical plot of accuracy/loss curves during training. We will inspect this plot for overfitting or underfitting.
Training the fire detection model with Keras
Training our fire detection model is broken down into three steps:
- Step #1: Run the
train.py
script with the--lr-find
command line argument to find our optimal learning rate. - Step #2: Update Line 17 of our configuration file (
config.py
) to set ourINIT_LR
value as the optimal learning rate. - Step #3: Execute the
train.py
script again, but this time let it train for the full set of epochs.
Start by using the “Downloads” section of this tutorial to download the source code to this tutorial.
From there you can perform Step #1 by executing the following command:
$ python train.py --lr-find 1 [INFO] loading data... [INFO] finding learning rate... Epoch 1/20 47/47 [==============================] - 10s 221ms/step - loss: 1.2949 - accuracy: 0.4923 Epoch 2/20 47/47 [==============================] - 11s 228ms/step - loss: 1.3315 - accuracy: 0.4897 Epoch 3/20 47/47 [==============================] - 10s 218ms/step - loss: 1.3409 - accuracy: 0.4860 Epoch 4/20 47/47 [==============================] - 10s 215ms/step - loss: 1.3973 - accuracy: 0.4770 Epoch 5/20 47/47 [==============================] - 10s 219ms/step - loss: 1.3170 - accuracy: 0.4957 ... Epoch 15/20 47/47 [==============================] - 10s 216ms/step - loss: 0.5097 - accuracy: 0.7728 Epoch 16/20 47/47 [==============================] - 10s 217ms/step - loss: 0.5507 - accuracy: 0.7345 Epoch 17/20 47/47 [==============================] - 10s 220ms/step - loss: 0.7554 - accuracy: 0.7089 Epoch 18/20 47/47 [==============================] - 10s 220ms/step - loss: 1.1833 - accuracy: 0.6606 Epoch 19/20 37/47 [======================>.......] - ETA: 2s - loss: 3.1446 - accuracy: 0.6338 [INFO] learning rate finder complete [INFO] examine plot and adjust learning rates before training
Examining Figure 6 above you can see that our network is able to gain traction and start to learn around 1e-5
.
The lowest loss can be found between 1e-2
and 1e-1
; however, at 1e-1
we can see loss starting to increase sharply, implying that the learning rate is too large and the network is overfitting.
To be safe we should use an initial learning rate of 1e-2
.
Letās now move on to Step #2.
Open up config.py
and scroll to Lines 16-19 where we set our training hyperparameters:
# define the initial learning rate, batch size, and number of epochs INIT_LR = 1e-2 BATCH_SIZE = 64 NUM_EPOCHS = 50
Here we see our initial learning rate (INIT_LR
) value — we need to set this value to 1e-2
(as our code indicates).
The final step (Step #3) is to train FireDetectionNet
for the full set of NUM_EPOCHS
:
$ python train.py [INFO] loading data... [INFO] compiling model... [INFO] training network... Epoch 1/50 46/46 [==============================] - 11s 233ms/step - loss: 0.6813 - accuracy: 0.6974 - val_loss: 0.6583 - val_accuracy: 0.6464 Epoch 2/50 46/46 [==============================] - 11s 232ms/step - loss: 0.4886 - accuracy: 0.7631 - val_loss: 0.7774 - val_accuracy: 0.6464 Epoch 3/50 46/46 [==============================] - 10s 224ms/step - loss: 0.4414 - accuracy: 0.7845 - val_loss: 0.9470 - val_accuracy: 0.6464 Epoch 4/50 46/46 [==============================] - 10s 222ms/step - loss: 0.4193 - accuracy: 0.7917 - val_loss: 1.0790 - val_accuracy: 0.6464 Epoch 5/50 46/46 [==============================] - 10s 224ms/step - loss: 0.4015 - accuracy: 0.8070 - val_loss: 1.2034 - val_accuracy: 0.6464 ... Epoch 46/50 46/46 [==============================] - 10s 222ms/step - loss: 0.1935 - accuracy: 0.9275 - val_loss: 0.2985 - val_accuracy: 0.8781 Epoch 47/50 46/46 [==============================] - 10s 221ms/step - loss: 0.1812 - accuracy: 0.9244 - val_loss: 0.2325 - val_accuracy: 0.9031 Epoch 48/50 46/46 [==============================] - 10s 226ms/step - loss: 0.1857 - accuracy: 0.9241 - val_loss: 0.2788 - val_accuracy: 0.8911 Epoch 49/50 46/46 [==============================] - 11s 229ms/step - loss: 0.2065 - accuracy: 0.9129 - val_loss: 0.2177 - val_accuracy: 0.9121 Epoch 50/50 46/46 [==============================] - 63s 1s/step - loss: 0.1842 - accuracy: 0.9316 - val_loss: 0.2376 - val_accuracy: 0.9111 [INFO] evaluating network... precision recall f1-score support Non-Fire 0.96 0.90 0.93 647 Fire 0.83 0.94 0.88 354 accuracy 0.91 1001 macro avg 0.90 0.92 0.91 1001 weighted avg 0.92 0.91 0.91 1001 [INFO] serializing network to 'output/fire_detection.model'...
Learning is a bit volatile here but you can see that we are obtaining 92% accuracy.
Making predictions on fire/non-fire images
Given our trained fire detection model, letās now learn how to:
- Load the trained model from disk.
- Sample random images from our dataset.
- Classify each input image using our model.
Open up predict_fire.py
and insert the following code:
# import the necessary packages from tensorflow.keras.models import load_model from pyimagesearch import config from imutils import paths import numpy as np import imutils import random import cv2 import os # load the trained model from disk print("[INFO] loading model...") model = load_model(config.MODEL_PATH)
Lines 2-9 handle our imports, namely load_model
, so that we can load our serialized TensorFlow/Keras model from disk.
Let’s grab 25 random images from our combined dataset:
# grab the paths to the fire and non-fire images, respectively print("[INFO] predicting...") firePaths = list(paths.list_images(config.FIRE_PATH)) nonFirePaths = list(paths.list_images(config.NON_FIRE_PATH)) # combine the two image path lists, randomly shuffle them, and sample # them imagePaths = firePaths + nonFirePaths random.shuffle(imagePaths) imagePaths = imagePaths[:config.SAMPLE_SIZE]
Lines 17 and 18 grab image paths from our combined dataset while Lines 22-24 sample 25 random image paths.
From here, we’ll loop over each of the individual image paths and perform fire detection inference:
# loop over the sampled image paths for (i, imagePath) in enumerate(imagePaths): # load the image and clone it image = cv2.imread(imagePath) output = image.copy() # resize the input image to be a fixed 128x128 pixels, ignoring # aspect ratio image = cv2.resize(image, (128, 128)) image = image.astype("float32") / 255.0 # make predictions on the image preds = model.predict(np.expand_dims(image, axis=0))[0] j = np.argmax(preds) label = config.CLASSES[j] # draw the activity on the output frame text = label if label == "Non-Fire" else "WARNING! Fire!" output = imutils.resize(output, width=500) cv2.putText(output, text, (35, 50), cv2.FONT_HERSHEY_SIMPLEX, 1.25, (0, 255, 0), 5) # write the output image to disk filename = "{}.png".format(i) p = os.path.sep.join([config.OUTPUT_IMAGE_PATH, filename]) cv2.imwrite(p, output)
Line 27 begins a loop over our sampled image paths:
- We load and preprocess the image just as in training (Lines 29-35).
- Make predictions and grab the highest probability label (Lines 38-40).
- Annotate the label in the top corner of the image (Lines 43-46).
- Save the output image to disk (Lines 49-51).
Fire detection results
To see our fire detector in action make sure you use the “Downloads” section of this tutorial to download the source code and pre-trained model.
From there you can execute the following command:
$ python predict_fire.py [INFO] loading model... [INFO] predicting...
Iāve included a set sample of results in Figure 8 — notice how our model was able to correctly predict āfireā and ānon-fireā in each of them.
Limitations and drawbacks
Our results are not perfect, however. Here are a few examples of incorrect classifications:
The image on the leftĀ in particular is troubling — a sunset will cast shades of reds and oranges across the sky, creating an āinfernoā like effect. It appears that in those situations our fire detection model will struggle considerably.
So, why are these incorrect classifications coming from?
The answer lies in the dataset itself.
To start, we only worked with raw image data.
Smoke and fire can be better detected with video as fires start off as a smolder, slowly build to a critical point, and then erupt into massive flames. Such a pattern is better detected in video streams rather than images.
Secondly, our datasets are quite small.
Combining the two datasets we only had a total of 4,003 images. Fire and smoke datasets are hard to come by, making it extremely challenging to create high accuracy models.
Finally, our datasets are not necessarily representative of the problem.
Many of the example images in our fire/smoke dataset contained examples of professional photos captured by news reports. Fires donāt look like that in the wild.
In order to improve our fire and smoke detection model, we need better data.
Future efforts in fire/smoke detection research should focus less on the actual deep learning architectures/training methods and more on the actual dataset gathering and curation process, ensuring the dataset better represents how fires start, smolder, and spread in natural scene images.
What's next? I recommend PyImageSearch University.
30+ total classes • 39h 44m video • Last updated: 12/2021
★★★★★ 4.84 (128 Ratings) • 3,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
Thatās not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And thatās exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here youāll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 30+ courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 30+ Certificates of Completion
- ✓ 39h 44m on-demand video
- ✓ Brand new courses released every month, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser ā works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 500+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In this tutorial, you learned how to create a smoke and fire detector using Computer Vision, Deep Learning, and the Keras library.
To build our smoke and fire detector we utilized two datasets:
- A dataset of fire/smoke examples (1,315 images), curated by PyImageSearch readersĀ Gautam Kumar.
- A dataset of non-fire/non-smoke examples (2,688 images) containing examples of 8 natural outdoor scenes (forests, coastlines, mountains, open country, etc.). This dataset was originally put together by Oliva and Torralba for their 2001 paper, Modeling the shape of the scene: a holistic representation of the spatial envelope.
We then designed a FireDetectionNet
— a Convolutional Neural Network for smoke and fire detection. This network was trained on our two datasets. Once our network was trained we evaluated it on our testing set and found that it obtained 92% accuracy.
However, there are a number of limitations and drawbacks to this approach:
- First, we only worked with image data. Smoke and fire can be better detected with video as fires start off as a smolder, slowly build to a critical point, and then erupt into massive flames.
- Secondly, our datasets are small. Combining the two datasets we only had a total of 4,003 images. Fire and smoke datasets are hard to come by, making it extremely challenging to create high accuracy models.
Building on the previous point, our datasets are not necessarily representative of the problem. Many of the example images in our fire/smoke dataset are of professional photos captured by news reports. Fires donāt look like that in the wild.
The point is this:
Fire and smoke detection is a solvable problem…but we need better datasets.
Luckily, PyImageSearch Gurus member David BonnĀ is actively working on this problem and discussing it in the PyImageSearch Gurus Community forums. If youāre interested in learning more about his project, be sure to connect with him.
I hope you enjoyed this tutorial!
To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), just enter your email address in the form below.
Download the Source Code and FREE 17-page Resource Guide
Enter your email address below to get a .zip of the code and a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL!
