In this tutorial, you will learn how to utilize Tesseract to detect, localize, and OCR text, all within a single, efficient function call.
Back in September, I showed you how to use OpenCV to detect and OCR text. This method was a three stage process:
- Use OpenCV’s EAST text detection model to detect the presence of text in an image
- Extract the text Region of Interest (ROI) from the image using basic image cropping/NumPy array slicing
- Take the text ROI, and then pass it into Tesseract to actually OCR the text
Our method worked quite well but was a bit complicated and less efficient due to the multistage process.
PyImageSearch reader Bryan wonders if there is a better, more streamlined way:
Hi Adrian,
I noticed that OpenCV’s uses the EAST text detection model. I assume text detection also exists inside Tesseract?
If so, is there anyway we can utilize Tesseract to both detect the text and OCR it without having to call additional OpenCV functions?
You’re in luck, Bryan. Tesseract does have the ability to perform text detection and OCR in a single function call — and as you’ll find out, it’s quite easy to do!
To learn how to detect, localize, and OCR text with Tesseract, just keep reading.
Looking for the source code to this post?
Jump Right To The Downloads SectionTesseract OCR: Text localization and detection
In the first part of this tutorial, we’ll discuss the concept of text detection and localization.
From there, I will show you how to install Tesseract on your system.
We’ll then implement text localization, detection, and OCR using Tesseract and Python.
Finally, we’ll review our results.
What is text localization and detection?
Text detection is the process of localizing where an image text is.
You can think of text detection as a specialized form of object detection.
In object detection, our goal is to (1) detect and compute the bounding box of all objects in an image and (2) determine the class label for each bounding box, similar to the image below:
In text detection, our goal is to automatically compute the bounding boxes for every region of text in an image:
Once we have those regions, we can then OCR them.
How to install pytesseract for Tesseract OCR
I have provided instructions for installing the Tesseract OCR engine as well as pytesseract (the Python bindings used to interface with Tesseract) in my blog post OpenCV OCR and text recognition with Tesseract.
Follow the instructions in the “How to install Tesseract 4” section of that tutorial, confirm your Tesseract install, and then come back here to learn how to detect and localize text with Tesseract.
Project structure
Go ahead and grab today’s .zip from the “Downloads” section of this blog post. Once you extract the files, you’ll be presented with an especially simple project layout:
% tree . ├── apple_support.png └── localize_text_tesseract.py 0 directories, 2 files
As you can see, we have only one Python script to review today — the localize_text_tesseract.py
file.
Secondly, we have a single image to test our OCR script with. Feel free to grab other photos and graphics to test today’s code with as well!
Implementing text localization, text detection, and OCR with Tesseract
We are now ready to implement text detection and localization with Tesseract.
Open up a new file, name it localize_text_tesseract.py
, and let’s get to work:
# import the necessary packages from pytesseract import Output import pytesseract import argparse import cv2 # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image to be OCR'd") ap.add_argument("-c", "--min-conf", type=int, default=0, help="mininum confidence value to filter weak text detection") args = vars(ap.parse_args())
We begin by importing packages, namely pytesseract and OpenCV. Be sure to refer to the “How to install pytesseract for Tesseract OCR” section above for installation links.
Next, we parse two command line arguments:
--image
: The path to the input image upon which we will perform OCR--min-conf
: In order to filter weak text detections, a minimum confidence threshold can be provided. By default, we’ve set the threshold to0
so that all detections are returned
Let’s go ahead and run our input --image
through pytesseract
next:
# load the input image, convert it from BGR to RGB channel ordering, # and use Tesseract to localize each area of text in the input image image = cv2.imread(args["image"]) rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB) results = pytesseract.image_to_data(rgb, output_type=Output.DICT)
Lines 17 and 18 load the input --image
and swap color channel ordering from BGR (OpenCV’s default) to RGB (compatible with Tesseract and pytesseract).
Then we detect and localize text using Tesseract and the image_to_data
function (Line 19). This function returns results
, which we’ll now post-process:
# loop over each of the individual text localizations for i in range(0, len(results["text"])): # extract the bounding box coordinates of the text region from # the current result x = results["left"][i] y = results["top"][i] w = results["width"][i] h = results["height"][i] # extract the OCR text itself along with the confidence of the # text localization text = results["text"][i] conf = int(results["conf"][i])
Looping over the text localizations (Line 22), we begin by extracting the bounding box coordinates (Lines 25-28).
To grab the OCR’d text
itself, we extract the information contained within the results
dictionary using the "text"
key and index (Line 32). This is the recognized text string.
Similarly, Line 33 extracts the confidence of the text localization (the confidence of the detected text).
From here, we’ll filter out weak detections and annotate our image
:
# filter out weak confidence text localizations if conf > args["min_conf"]: # display the confidence and text to our terminal print("Confidence: {}".format(conf)) print("Text: {}".format(text)) print("") # strip out non-ASCII text so we can draw the text on the image # using OpenCV, then draw a bounding box around the text along # with the text itself text = "".join([c if ord(c) < 128 else "" for c in text]).strip() cv2.rectangle(image, (x, y), (x + w, y + h), (0, 255, 0), 2) cv2.putText(image, text, (x, y - 10), cv2.FONT_HERSHEY_SIMPLEX, 1.2, (0, 0, 255), 3) # show the output image cv2.imshow("Image", image) cv2.waitKey(0)
Comparing confidence versus our --min-conf
command line argument ensures that the confidence is sufficiently high (Line 36).
In our terminal, we print
information for debugging/informational purposes, including both the confidence and text itself (Lines 38-40).
OpenCV’s cv2.putText
function doesn’t support non-ASCII characters, so we need to strip any non-ASCII characters out. This is handled by Line 45, where we work with character ordinals (ord(c)
). Be sure to refer to this ASCII chart in Wikipedia as needed.
With the special characters eliminated from our text
, now we’ll annotate the output image. Line 46 draws a bounding box around the detected text, and Lines 47 and 48 draw the text
itself just above the bounding box region.
Finally, using OpenCV’s imshow
function, we display the result on our screen (Line 51). In order to keep the GUI window on the screen longer than a few milliseconds, the cv2.waitKey(0)
call locks the GUI window as visible until any key is pressed.
Great job performing OCR with Tesseract and pytesseract.
Tesseract text localization, text detection, and OCR results
We are now ready to perform text detection and localization with Tesseract!
Make sure you use the “Downloads” section of this tutorial to download the source code and example image.
From there, open up a terminal, and execute the following command:
$ python localize_text_tesseract.py --image apple_support.png Confidence: 26 Text: a Confidence: 96 Text: Apple Confidence: 96 Text: Support Confidence: 96

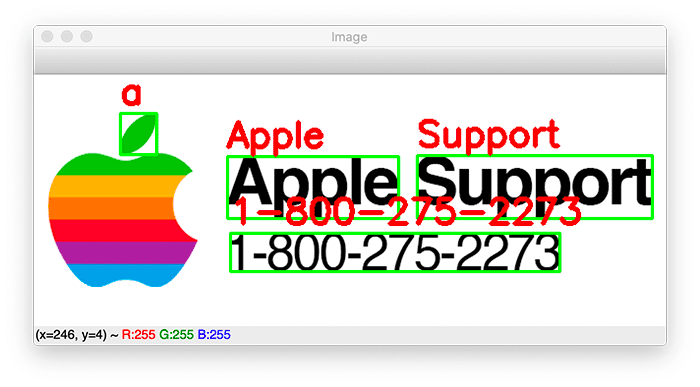

Here, you can see that Tesseract has detected all regions of text and OCR’d each text region. The results look good, but what is up with Tesseract thinking the leaf in the Apple logo is an a
?
If you look at our terminal output, you’ll see that particular text region has low confidence.
We can improve our Tesseract text detection results simply by supplying a --min-conf
value:
$ python localize_text_tesseract.py --image apple_support.png --min-conf 50 Confidence: 96 Text: Apple Confidence: 96 Text: Support Confidence: 96 Text: 1-800-275-2273
Here, we are filtering out any text detections and OCR results that have a confidence <= 50
, and as our results show, the low quality text region has been filtered out.
When developing your own text detection and OCR applications with Tesseract, consider using the image_to_data
function — it’s super easy to use and makes text localization a breeze.
What's next? I recommend PyImageSearch University.
30+ total classes • 39h 44m video • Last updated: 12/2021
★★★★★ 4.84 (128 Ratings) • 3,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 30+ courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 30+ Certificates of Completion
- ✓ 39h 44m on-demand video
- ✓ Brand new courses released every month, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 500+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In this tutorial, you learned how to use Tesseract to detect text, localize it, and then OCR it.
The benefit of using Tesseract to perform text detection and OCR is that we can do so in just a single function call, making it easier than the multistage OpenCV OCR process.
That said, OCR is still an area of computer vision that is far from solved.
Whenever confronted with an OCR project, be sure to apply both methods and see which method gives you the best results — let your empirical results guide you.
To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
